Requirements#

Depending on whether you want to set up a production, testing, or local development environment, there will be different things you need to take care of. While the Local Dev System Setup is described in a separate section, the following notes will focus on what is needed to get our applications running on a publicly reachable server, either for testing purposes or to run in production.

System requirements#

The specific dimensions of any machine you will run base applications on, depends of course on the specific user case. For an internal single server setup in a test scenario the following specifications worked quite well in our tests (we usually run everything on virtualized nodes, but you could also go for a dedicated host system):

  • 4 CPU cores

  • 8 GB RAM

  • 50 GB disk

  • 50 GB NFS share

Although for a local test system even a virtual machine with 2 cores, 2 GB RAM, and 20 GB hard disk worked well.

The final disk space depends mostly on how much media your users will upload. And in case of heavy loads, the first component to factor out to a separate machine should be Portfolio, as it will handle all media conversions.

System setup#

The minimal setup needed, is a fresh Linux system, with Docker installed, and the make command available. While in theory, this should run on any major Linux distribution, we suggest using Debian, or a Debian-based distro like Ubuntu. We usually test our applications only on Debian and Ubuntu.

The specific requirement and setup then depends on whether you want to:

  • go for a single-server setup, where one machine is running all applications

  • or a multi-server setup, where different machines host different (parts) of our applications

In any case you need to do the following on any server running any (parts) of our applications:

  • install the Docker Engine for your specific distro

  • install the make command (e.g. with sudo apt install make).

    Note

    This holds only for minimal server setups. In more complex cases you might want to install the build-essential package instead (this will also install make). Especially in a local dev setup you will need it to manage python evironments. If you run into issues with building something on a test server, where you only installed make, try installing the build-essential first.

  • for legacy reasons we currently need to also have the docker-compose command available, which was superseded by docker compose. If your specific docker installation provides both, you are all set. Otherwise, you can emulate the older docker-compose command by doing the following:

    echo 'docker compose "$@"' | sudo tee /usr/local/bin/docker-compose
sudo chmod +x /usr/local/bin/docker-compose

  • create a user base that is allowed to execute with sudo, e.g. by doing:

    sudo adduser base
sudo usermod -a -G sudo base

  • create a folder /opt/base belonging to the base user.

  • make sure the server’s IP address can be reached publicly, and HTTP & HTTPS traffic to and from it is allowed.

    Warning

    This is necessary even for an internal test server, in order for Let’s Encrypt to be able to create the SSL certificates. We strongly recommend to not run any service unencrypted on any server, even if it is in your internal network. You can do that with the Local Dev System Setup. If you nevertheless want to do that and not use Let’s Encrypt certificates, you will have to do quite some tweaking, which we are unable to document in a very generic way, because it will depend a lot on your local circumstances. You can contact us, and we are happy to point you to where to start tweaking, but basically you are on your own, if you want to go down that road.

To decide which path to take from here, a requirement is to understand how our different applications work together. The following diagram should help to explain this based on a single-server setup:

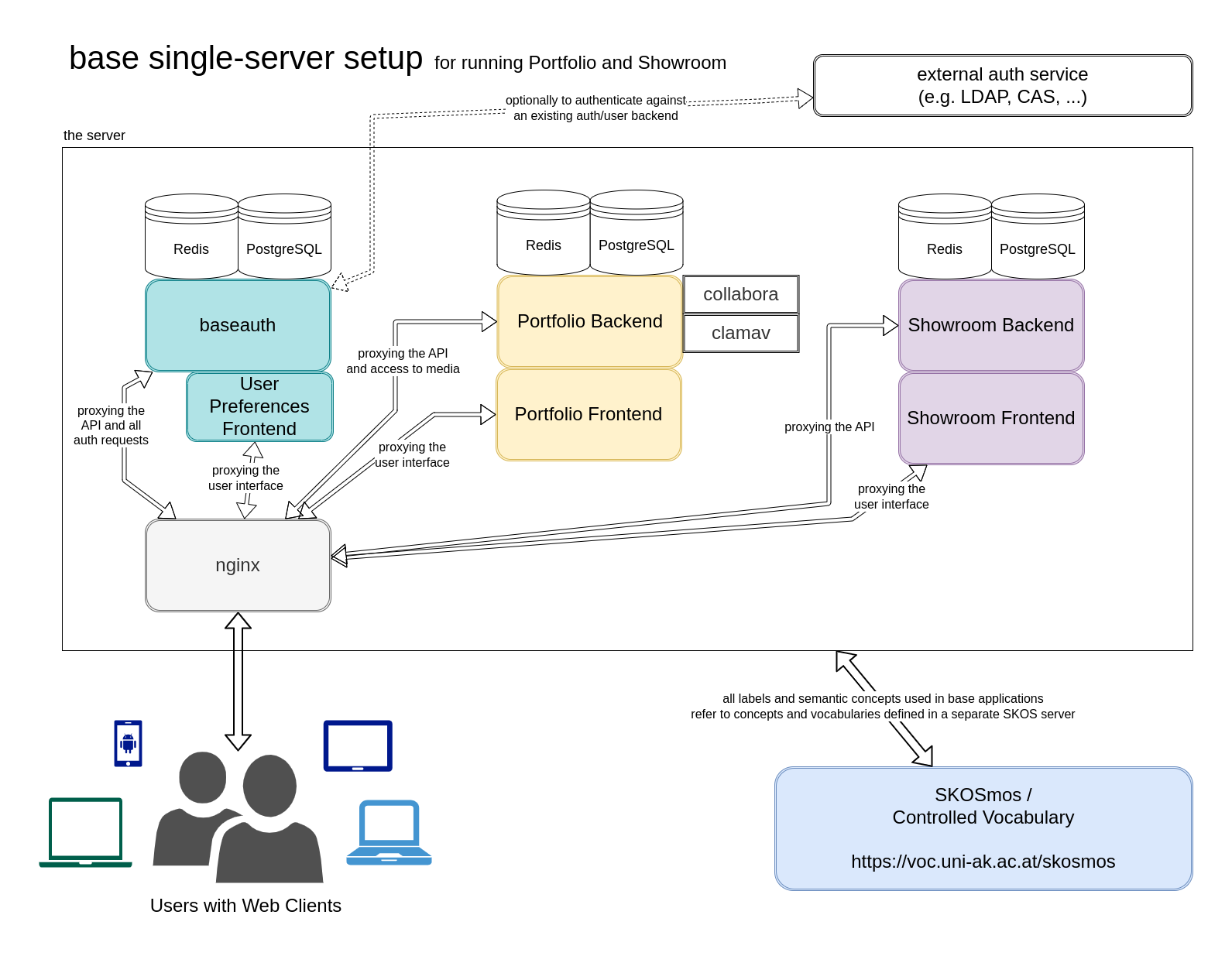

Single-Server-Setup for Portfolio and Showroom (full-size image: _static/single-server-architecture.drawio.png drawio source: _static/single-server-architecture.drawio)

All the single components shown inside the server block run on separate Docker containers, except for those frontend parts that can be built to static sources once, which are then hosted directly by nginx. But also the building of these static sources is done with a container. There are even some more containers in the final setup, which are not explicitly shown here (e.g. the django job queue workers in Portfolio and Showroom), but they should be considered an integral part of the respective backend component.

In case of a multi-server-setup, you can decide to take some parts, e.g. the Portfolio frontend and backend, to be hosted on a dedicated machine, similar to the Showroom frontend and backend, while keeping Baseauth on your main machine serving as an entry point. In this case you will nevertheless need the nginx component on every machine, because it serves as the reverse proxy, distributing incoming HTTP requests to the respective containers providing either frontend or backend services - as the containers themselves are not (and should not be) publicly accessible.
